Press Brake Bending Force Calculator

Calculate required tonnage, select your back gauge configuration, and send results directly via WhatsApp.

Formula

F = （650 × T² × L）/ V · T = thickness · L = length · V = die opening

Material

Material Type

Mild Steel

Stainless Steel

Aluminium

Copper

High Strength

Tensile Strength (σ)

MPa

Sheet Thickness (T)

Dimensions

Bending Length (L)

Bending Angle

V-Die Opening (V) — recommended: 24mm 24 mm

450100150200

Number of Bends

pcs

V-Die Cross Section

Result

Required Tonnage

—

Tons

Force (kN)—

Force / meter (kN/m)—

Rec. V-Opening—

Min. Flange Width—

Total Tonnage—

Enter values to calculate

Back Gauge Configuration

Select a back gauge configuration. The "+1" refers to the mechanical crowning device included on all Hudong CNC press brakes.

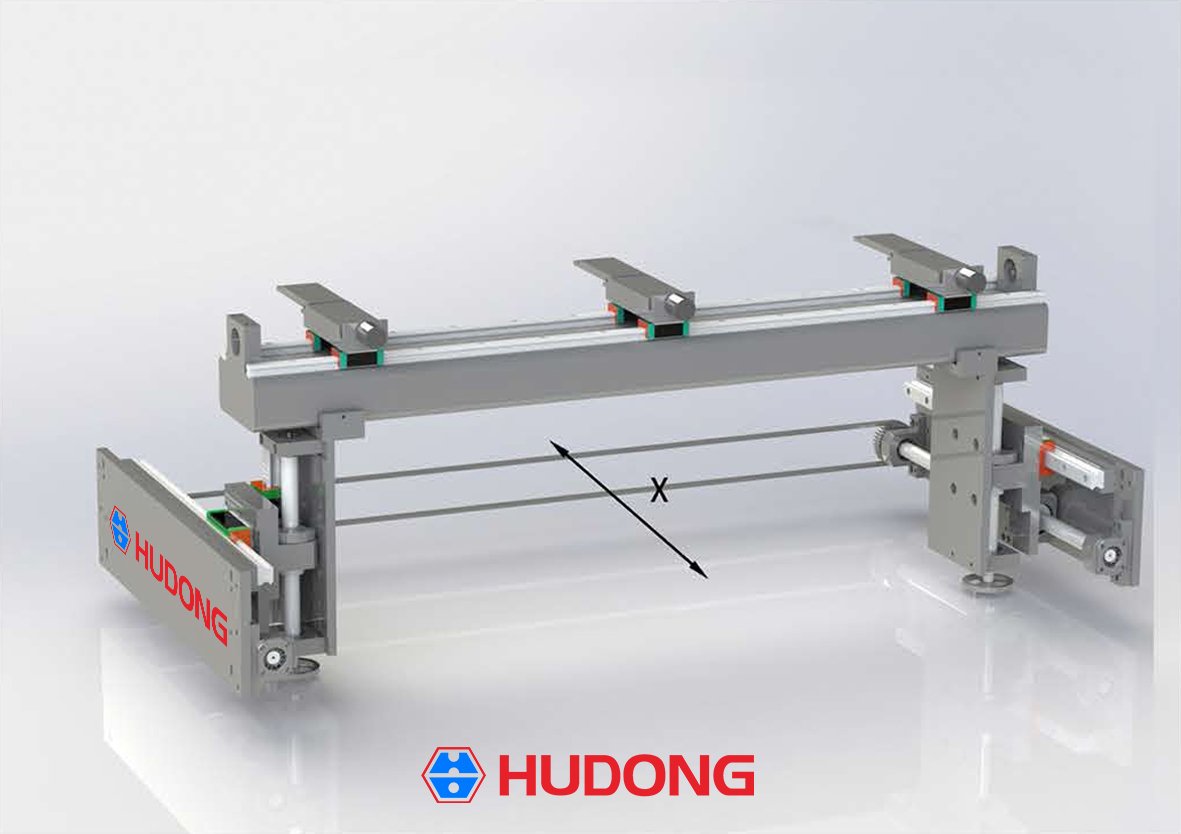

2+1 Axis

X · Y

Y — BeamX — Depth

Standard configuration. X-axis controls depth; Y-axis controls beam. Most economical option.

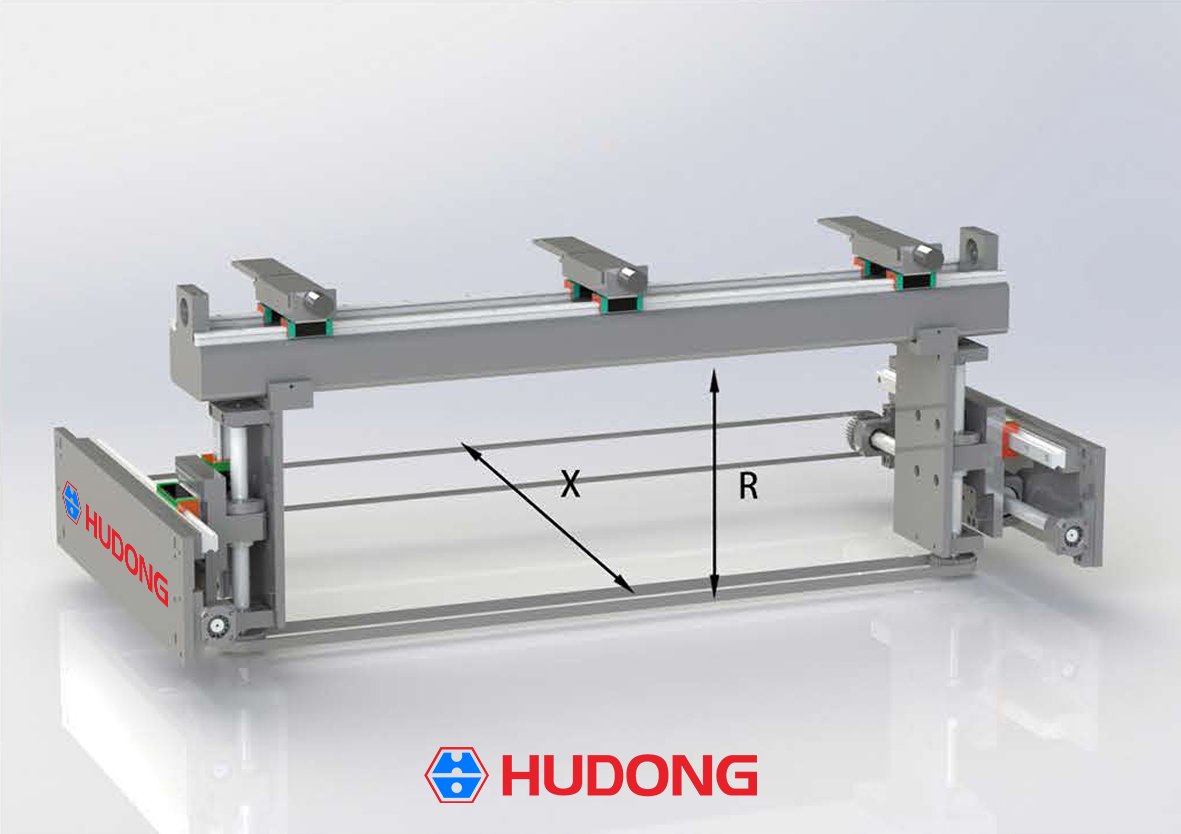

4+1 Axis

X · Y1·Y2 · R

Y1/Y2 — SyncX — DepthR — Height

Adds R-axis (finger height). Supports multi-step bending sequences. Most popular choice.

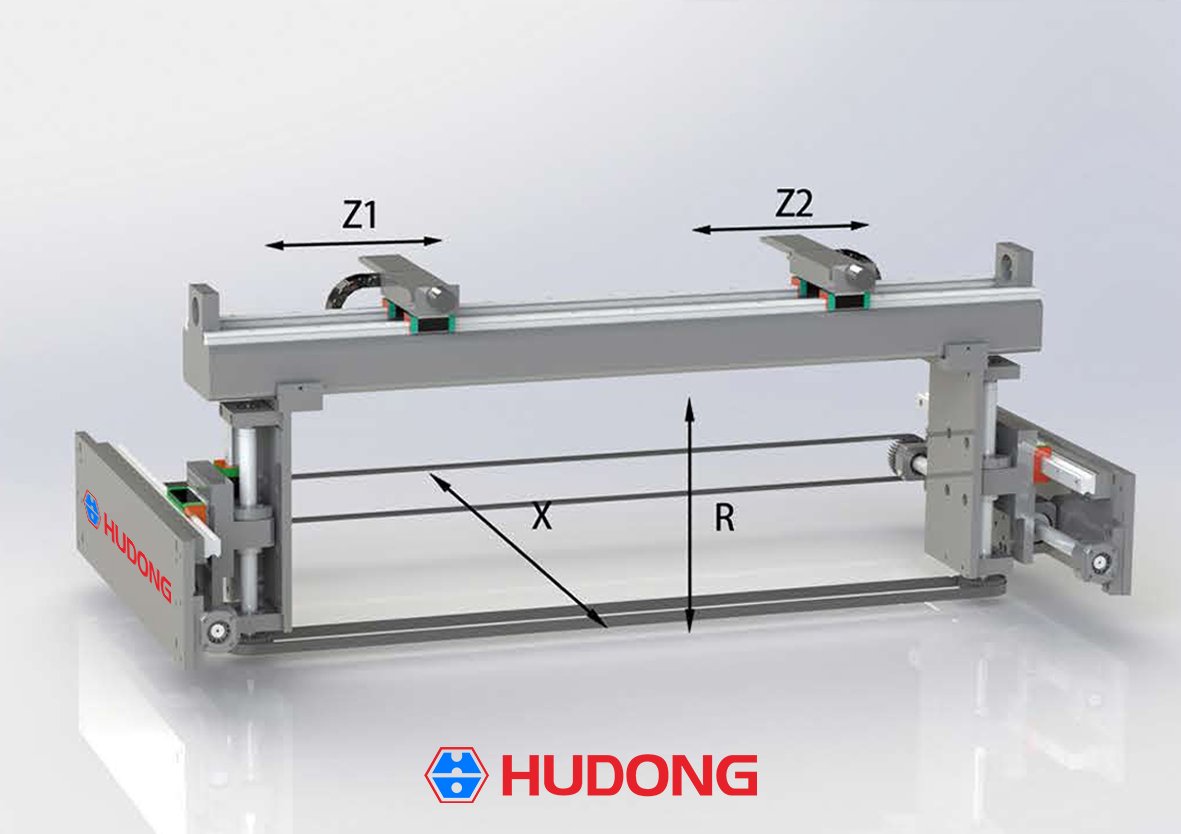

6+1 Axis

X · R · Z1·Z2

X — DepthR — HeightZ1/Z2 — Lateral

Adds Z1/Z2 lateral movement. Enables complex multi-reference parts without repositioning.

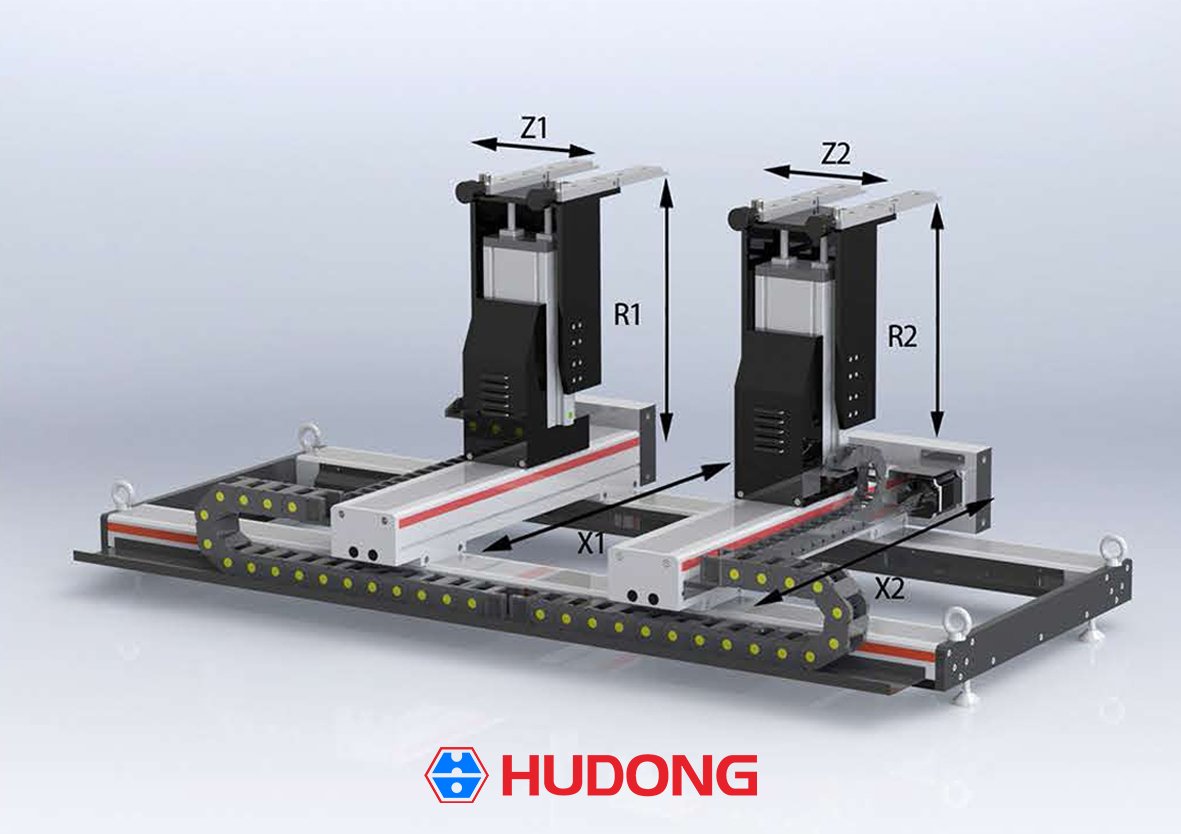

8+1 Axis

X1·X2·R1·R2·Z1·Z2

X1/X2 — IndependentR1/R2 — IndependentZ1/Z2 — Lateral

Dual independent arms. Maximum flexibility for asymmetric parts and full automation.

Complete Machine Recommendation

—

Axis Configuration

Send Results via WhatsApp

Get a quote based on your calculation — we reply within 24h

Message Preview

—

WhatsApp will open with the message pre-filled. Just tap Send. Our team replies within 24 hours.

Need a machine that matches your requirements? Contact Hudong Machinery — we'll recommend the right press brake.
